| Brand Name : | huaheng titanium |
| Model Number : | HUAHENG002 |
| Certification : | ISO9001-2008 |
| Price : | USD 30 |
| Delivery Time : | 15 days |
| Payment Terms : | T/T |
| Supply Ability : | 30 TONS PER MONTH |

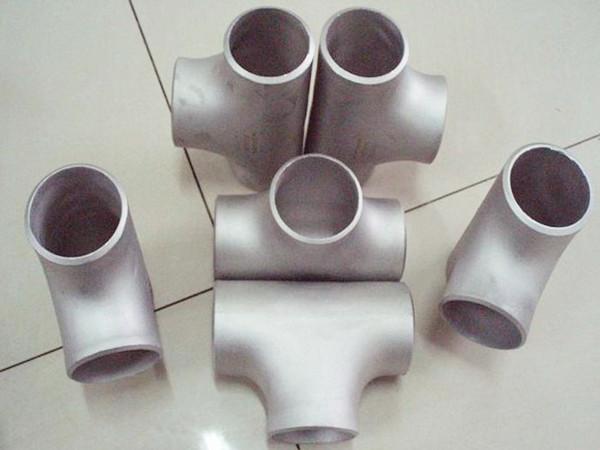

ASTM B363 Titanium Pipe Fittings Tee for Sale
Briefintroduction of product
titanium pipe fittings/elbow/tee/stub-end/swage/flange
Material | ASTM A234 WPB, WPC, A105; A420 WPL6, WPL9, WPL3, WPL8; WPHY42, 46, 52, 56, 60, 65, 70 |
Standard | ANSI B16.9, ANSI B16.28, JIS B2312, DIN 2605/2615/2616 |
Size | Seamless fitting: 1/2" -24"; Welded fitting: 16" -72" |
Thickness | Sch5-Sch160, STD, XS, XXS |
Connection | Butt Welding |
Type | reducing elbow, long radius elbow, short radius elbow, 45D L/R Elbow, 45D S/R Elbow, 90D L/R Elbow, 90D S/R Elbow, 180D L/R Elbow, 180D S/R Elbow |
Marking | standard or as customer' s need |
Inspection | in-house or the third party |
Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc |
Delivery Time | within 25-30 days after we have confirmed your order |
MOQ | 10 pieces or as your requirement |
Packing | wooden cases or wooden pallets or as per customer' s requirement |
Productivity | 300 tons per year |
Chemical Composition
Composition % | |||||||||||
N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
Grade 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | balance |
Grade 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | balance |
Grade 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | balance |
Grade 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | balance |
Grade 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | balance |
Grade 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | balance |
Grade 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | balance |
Grade 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | balance |
Tolerances in size for Titanium Bars
Diameter (mm) | |||||||
>15~20 | >20~35 | >35~50 | >50~80 | >80~125 | >125~150 | >150~200 | |
Hot forged bar | ±1.5 | ±2.0 | ±2.5 | ±3.0 | ±3.5 | ±5.0 | ±6.5 |
Hot extruded bar | +0.8,-1.0 | ±2.0 | ±2.5 | ±2.5 | |||
Hot rolled bar | +0.7, -0.5 | +1.2, -0.5 | +1.5, -1.0 | +2.0, -1.0 | +2.2, -1.2 | - | - |
Tensile Requirements
Grade | Tensile strength (min) | Yield strength (min) | Elongation (%) | ||
ksi | MPa | ksi | MPa | ||
Grade 1 | 35 | 240 | 20 | 138 | 24 |
Grade 2 | 50 | 345 | 40 | 275 | 20 |
Grade 3 | 65 | 450 | 55 | 380 | 18 |
Grade 4 | 80 | 550 | 70 | 483 | 15 |
Grade 5 | 130 | 895 | 120 | 828 | 10 |
Grade 7 | 50 | 345 | 40 | 275 | 20 |
Grade 9 | 90 | 620 | 70 | 438 | 15 |
Grade 12 | 70 | 438 | 50 | 345 | 18 |
Product | Titanium Tee |
Type | Equal/Straight Tee |
ReducingTee | |
Grade | Gr1,Gr2,Gr5,Gr7,Gr11,Gr12 |
Specification | Outer Diameter DN15-1200 NPS 1/2"-48" |
Wall Thickness 2MM-30MM SCH5S-SCH160 | |
Standard | ASME B16.9-2007, MSS SP 43-1991 , MSS SP 75-2008 |
Technique | Seamless Extrusion,Buttwelding Seamless |
Surface Finished | Sand Blasting Polishing |
Quality Control | 100% X-RAY or Dye Penetrate Test |
Application | petroleum, gas, chemical industry, electric power, metallurgy,
pharmacy, shipyard and other similar yield. |
Product advantages:
1.Low Density and High Strength
2.Excellent Corrosion Resistance
3.Good resistance to high temperature
4.Excellent Bearing to cryogenic property
5.Good thermal properties
6.Low Modulus of Elasticity
7.Toughness, light weight
8.High property of acid and alkali resistance
|
|
